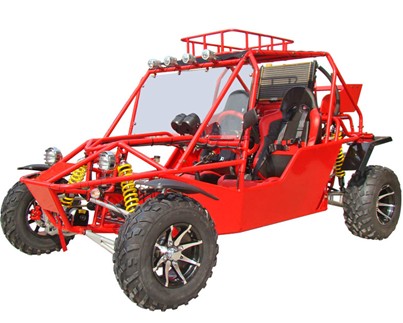

800cc Go-Kart |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SPECIFICATIONS |
GK-04A |
|
CONFIGURE | |
|
Colors available |
Red,Yellow,Blue,Black |
|
Decals(Y/N) |
Y |
|
Tool kit(Y/N) |
Y |
|
Remote start(Y/N) |
N |
|
Remote engine stop(Y/N) |
N |
|
Remote alarm(Y/N) |
N |
|
Speed limiter(Y/N) |
N |
|
Assembly required |
* |
|

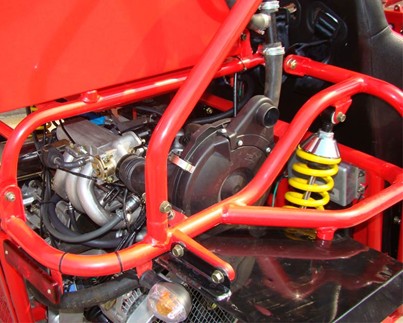

ENGINE INFO | |
|
Engine type |
Fuel injection engine,Water cooled,3 cylinder,4 stroke |
|
Engine brand |
HH368Q |
|
Displacement |
796ml |
|
Cooling |
Water cooling |
|
Max horsepower |
35.54HP/26.5KW |
|
Max torque |
41.3 Pt lb.(56N.m/2500rpm) |
|
Bore*stroke |
68.5 MM X 72MM |
|
Max speed |
50MILE/H;80km/h |
|
Climbing ability |
10° |
|
Ignition |
C.D.I |
|
Starting system |
Electric |
|
Battery |
12V/ 32 AH |
|
Carburetor brand |
* |
|
Engine oil |
* |
|
Gear oil |
* |
|
CHASSIS ETC | |
|
Clutch |
Foot operated |
|
Transmission |
4 front and 1 reverse |
|
Driveline |
Shaft drive |
|
Driving wheel |
2 wheel drive |
|
Suspension,front/rear |
Front and rear double rocker arm |
|
Brakes,front/rear |
Front and rear hydraulic disc brake |
|
Brake operation |
Hand and foot |
|
Tires,front/rear |
Front wheel: 25X8-12; Rear wheel: 25X10-12 |
|
Fuel capacity/type |
5.3GAL/ 20L |
|
Weight,G.W./N.W. |
1252LBS/ 1088LBS/568KG/ 493 KG |
|
Max load |
* |
|
DIMENSIONS | |
|
Wheelbase |
87.8''/2230MM |
|
OA L*W*H |
115.4X67.3X64.6inches,2930X1710X1640 MM |
|
Height to seat |
* |
|
Min ground clearance |
8.1",205 MM |
|
Carton size |
116.1X57.1X33.1inches/ 2950X1450X840MM |
|
Shipping info |
20'GP:6;40'GP:12; 40'HQ:16 |
