800cc Go-Kart |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SPECIFICATIONS |
GK-04 |
|

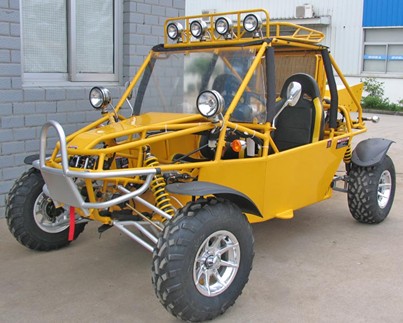

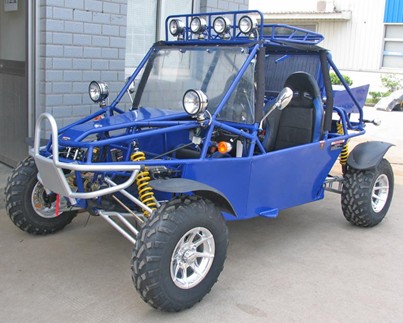

Colors available |
Red, blue, yellow. Black |
|
Features |
Fuel injection engine , circular gas tank,top light,top carrier, stainless steel hub cover |
|
ENGINE INFO | |
|
Engine type |
Fuel injection engine,3 cylinders,4 stroke |
|
Displacement |
0.78L |
|
Cooling |
Liquid cooled |
|
Max horsepower |
39.5Hp/5500±50/r/min |
|
Max torque |
62/2500-3000N.m/r/min |
|
Bore*stroke |
68.5mm*72mm |
|
Max speed |
50mile/h |
|
Climbing ability |
55 degree |
|
Ignition |
C.D.I |
|
Starting system |
Electric |
|
Battery |
12V. 32Ah |
|
Engine oil |
SAE 15W40(summer),SAE10W/30(winter) |
|
Gear oil |
AP/GL4 SAE75W/85 |
|
CHASSIS ETC. | |
|
Transmission |
Manual shift ,4 speed + (REV) |
|
Driveline |
Shaft |
|
Driving wheel |
2 rear wheels drive |
|
Suspension,front/rear |
independent suspension |
|
Brakes,front/rear |
Hydraulic disc brake, right foot control |
|
Tires,front/rear |
front25*8-12,rear 25*10-12 |
|
Fuel capacity/type |
20L |
|
Weight,G.W./N.W. |
1034LBS/946LBS(470KGS/430KGS) |
|
Max load |
550LBS(250KGS) |
|
DIMENSIONS | |
|
Wheelbase |
2220mm |
|
OA L*W*H |
134.25”X66.93”X57.87”(3410*1700*1470mm) |
|
Height to seat |
550mm |
|
Min ground clearance |
215mm |
|
Carton size |
116.14”X57.87”X33.86”( 2.95*1.47*0.86M) |
|
Shipping info |
6pcs/20”. 16pcs/40HQ |
 |
 |
 |
 |
