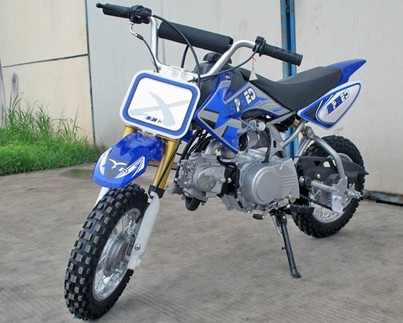

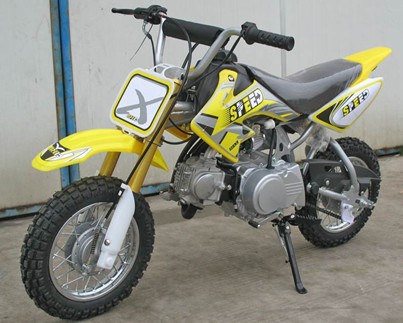

70cc Dirt Bike
ROKETA DB-18
|
SPECIFICATIONS |
DB-18
|
|
CONFIGURE |
|
Colors available |
RED/BLACK/YELLOW/BLUE |
|
Decals(Y/N) |
Y |
|
Tool kit(Y/N) |
Y |
|
Remote start(Y/N) |
N |
|
Remote engine stop(Y/N) |
N |
|
Remote alarm(Y/N) |
N |
|
Speed limiter(Y/N) |
N |
|
Assembly required |
FR WHEEL、 STEERING HANDLE
、FR FENDER、DECORATE COVER，SPROCKET COVER |
|
ENGINE INFO |
|
Engine type |
1P47FMD 4-STROKE、SINGLE CYLINDER、AIR COOLED
|
|
Engine brand |
Fourth Ring |
|
Displacement |
70CC |
|
Cooling |
AIR COOLED |
|
Max horsepower |
4.36/7500(KW/R/MIN) |
|
Max torque |
6.18/5500(N.M/R/MIN) |
|
Bore*stroke |
47mm×41.7mm |
|
Max speed |
55km/h |
|
Climbing ability |
|
|
Ignition |
C .D.I |
|
Starting systemm |
FOOT START |
|
Batterym |
* |
|
Carburetor brand |
PZ19 |
|
Engine oil |
|
|
Gear oil |
|
|
CHASSIS ETC. |
|
Clutch |
AUTOMATIC |
|
Transmission |
|
|
Driveline |
CHAIN DRIVE |
|
Driving wheel |
RR WHEEL DRIVE |
|
Suspension,front/rear |
|
|
Brakes,front/rear |
DRUM |
|
Brake operation |
HAND+FOOT |
|
Tires,front/rear |
2.75-10 |
|
Fuel capacity/type |
3.5L |
|
Weight,G.W./N.W. |
48kg/40kg |
|
Max load |
50kg |
|
DIMENSIONS |
|
Wheelbase |
935mm |
|
OA L*W*H |
1330×600×820mm |
|
Height to seat |
600mm |
|
Min ground clearance |
110mm |
|
Carton size |
1175×390×600 MM |
|
Shipping info |
40FT 240T |
|
|
