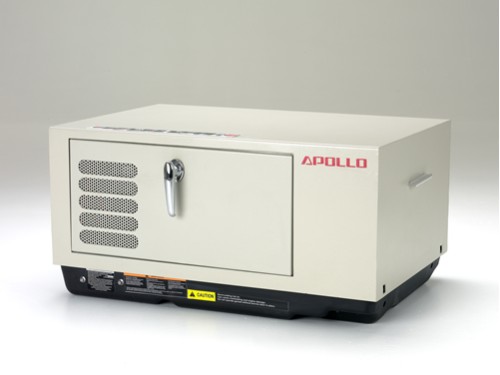

4KW RV Generator
ARG-4K Gasoline Genset
NRG-4K LP Genset
|
|
STANDARD
FEATURES
|
LP or Gasoline
Remote start
Automatic
Voltage Regulator
Fully housed
Over / under voltage protection
Over /
under frequency protection
Mechanical fault protection
Fuel
filrer
|
Electric starter
4 point vibration isolation
Magneto
ignition
Magnetic curcuit protection
Saftey shut-off
Start - stop prime
rocker switch
Led status indicator
Automatic choke |
Model
|
ARG-4K
Gasoline Genset
|
NRG-4K LP
Genset
|
Engine type
|
4 Stroke OHV single cylinder
304cc
|
4 Stroke OHV single
cylinder
304cc
|
Max engine output
|
7.6 HP
|
7 Hp
|
Output
|
4 Kw
|
3.6 Kw
|
Voltage
|
120
|
120
|
Current (Amps)
|
33.3
|
30
|
Frequency
|
60 Hz
|
60 Hz |
Rotation speed
|
3600 RPM
|
3600 RPM |
Pahse
|
Single
|
Single
|
Cooling
|
Air, cross flow
|
Air, cross flow |
Circuit breaker
|
1 Pole 30A
|
1 Pole 30A |
Overall Dimensions
|
29.49 X 19.47 X 13.98"
|
29.49 X 19.47 X 13.98" |
Weight
|
175 Lb
|
175 Lb |
|
6300w Peak
5000w Rated
10HP Diesel engine
electric start&recoil start with low oil alert system
battery included
includes mobility kit
two 120v outlets
one 120v twist lock output
one 120V/240V twist lock outlet
12V DC outlet
Engine/Drive
Train
|
Displacement:
|
|
Horsepower:
|
|
Max Power [kw/(r/min)]:
|
|
Max Torque
[n.m/(r/min)]:
|
|
Cooling System:
|
|
Transmission:
|
|
Drive:
|
|
Starter:
|
|
Ignition:
|
|
Top Speed:
|
|
Chasis / Suspension
/ Brakes
|
Frame:
|
|
Front Suspension:
|
|
Front Brakes:
|
|
Rear Brakes:
|
|
Front Tires:
|
|
Rear Tires:
|
|
Controls /
Safety
|
Lighting:
|
|
Controls:
|
|
Capacities /
Dimensions
|
Weight Capacity:
|
|
Net Weight:
|
|
Ground Clearance:
|
|
Length:
|
|
Width:
|
[Error processing
dynamic tag getCurrentAttribute('item','custitem_width') : attribute
'custitem_width' not found]
|
Height:
|
|
Seat Height:
|
|
Wheelbase:
|
|
Manufacturer Warranty: 12
months parts
